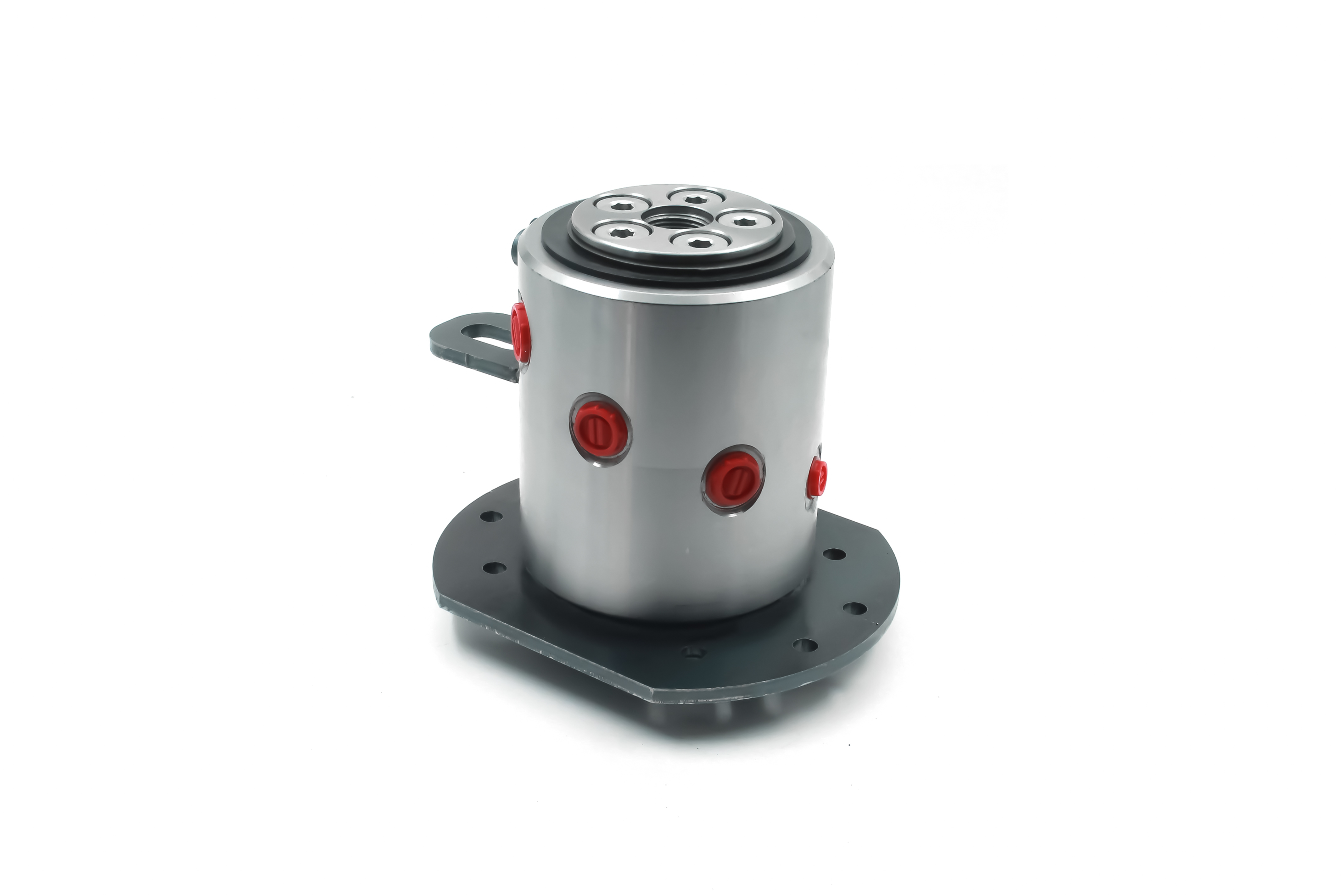

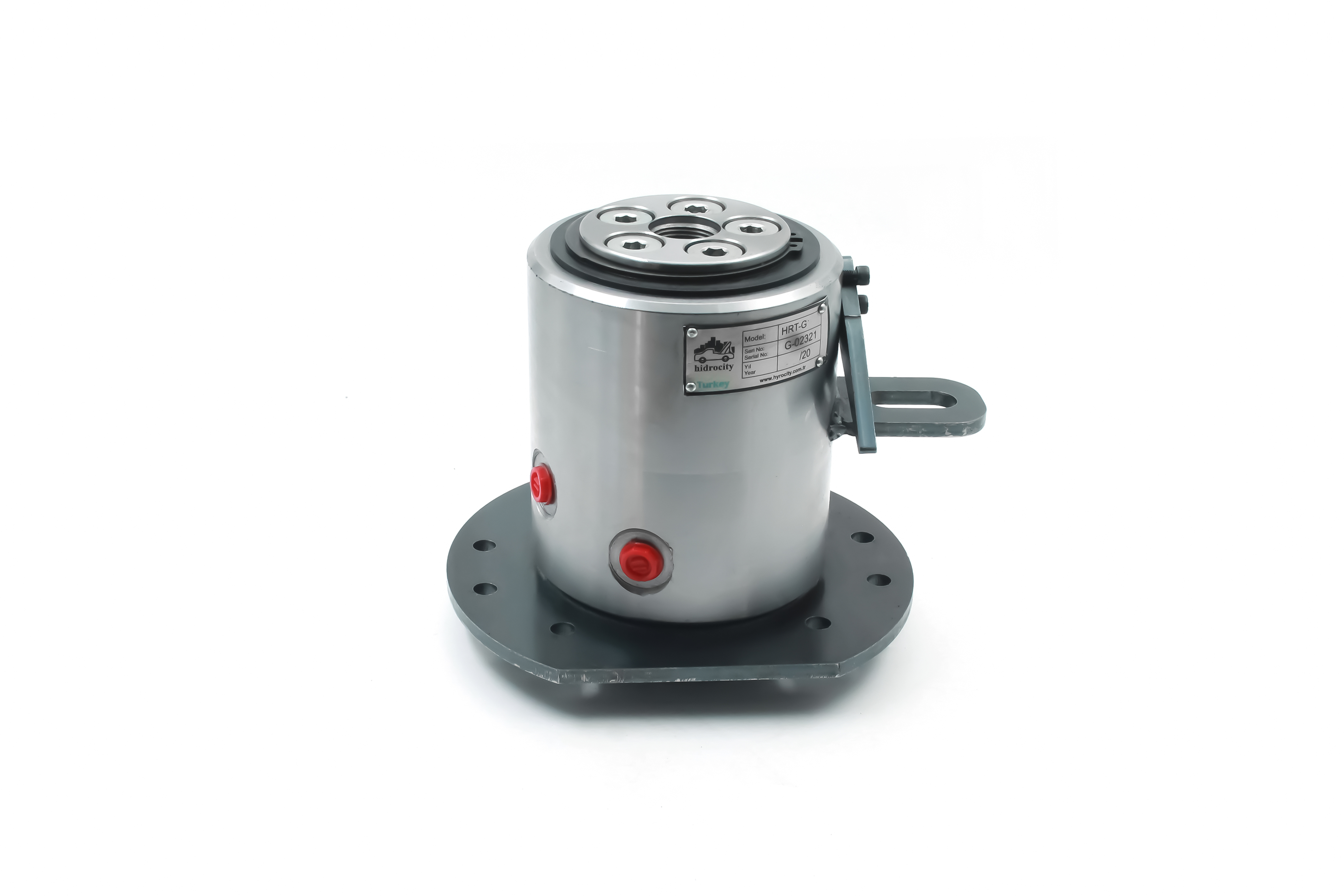

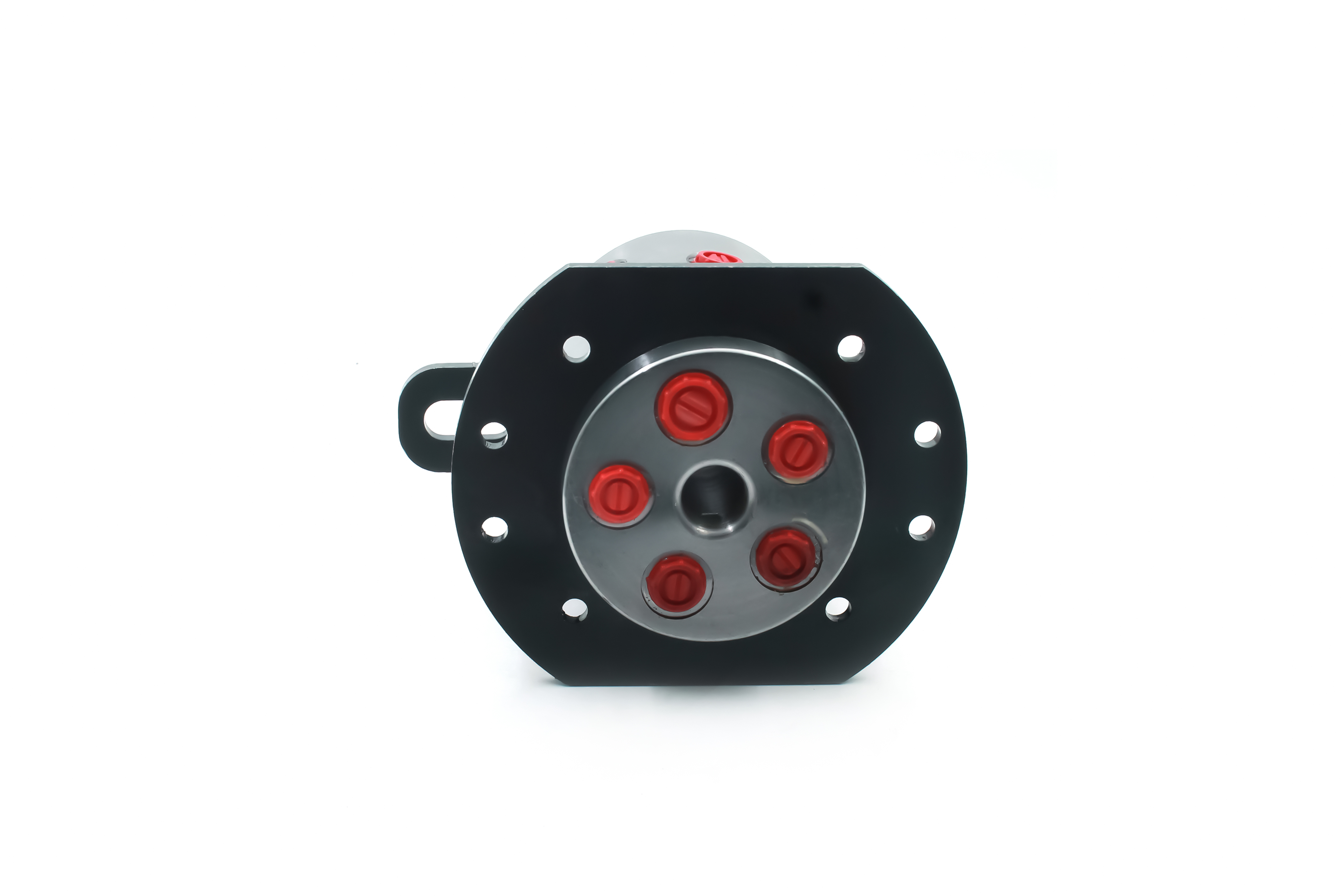

Hydraulic Transmission Center / HRT-G5
The professional team within Hidrocity provides the sales and supply of the Hydraulic Transmission Center / HRT-G5, which has 5 inputs and 5 outputs.
Hydraulic Transmission Center / HRT-G5 has a working pressure of 300 and a test pressure of 400.

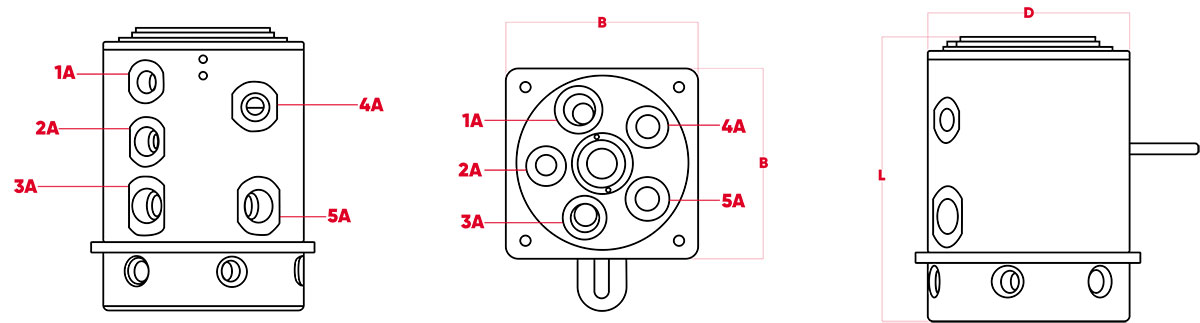

You can see the table with the images, technical drawings and technical specifications of the product below.
Technicial Specifications
| 1A | 2A | 3A | 4A | 5A | 6A | B(mm) | D(mm) | L (mm) | Working pressure (bar) | Test pressure (bar) |
| 3/8'' | 1/2'' | 1 | 3/8'' | 1 | - | 200 | 178 | 275 | 300 | 400 |
Hydraulic Transmission Center / HRT-G5
